Monitoring

The KES server provides a metrics API endpoint that exposes various server metrics in the Prometheus exposition format.

Use the following steps to get started monitoring KES with Prometheus.

1. Generate Prometheus Credentials

   Create credentials for the Prometheus server to use to authenticate to KES.

   $ kes identity new --key client.key --cert client.crt prometheus

     Private key:  client.key
     Certificate:  client.crt
     Identity:     2169daa644eb18b41d85214a20f7272d449e85ef4f1bf3e2609fbe3fa7ca00cd


2. Create KES Policy

   Create a policy on the KES server that allows Prometheus to scrape the metrics.

   policy:
     prometheus:
       allow:
       - /v1/metrics
       identities:
       - 2169daa644eb18b41d85214a20f7272d449e85ef4f1bf3e2609fbe3fa7ca00cd # Use the identity of your client.crt


   Restart the KES server after modifying the configuration file.

3. Create Prometheus Scrape Config

   Configure Prometheus to use the TLS client certificate when scraping the KES metrics.

   global:
     scrape_interval:     15s
     evaluation_interval: 15s

   scrape_configs:
     - job_name: KES
       scheme: https
       tls_config:
         cert_file: client.crt
         key_file:  client.key
         # ca_file: public.crt           # Optionally, specify the KES server CA certificate or the self-signed KES server certificate.
       metrics_path: /v1/metrics
       static_configs:
         - targets: ['localhost:7373']   # Specify KES endpoint.


After the KES and Prometheus servers start, Prometheus should detect and display a new KES target.

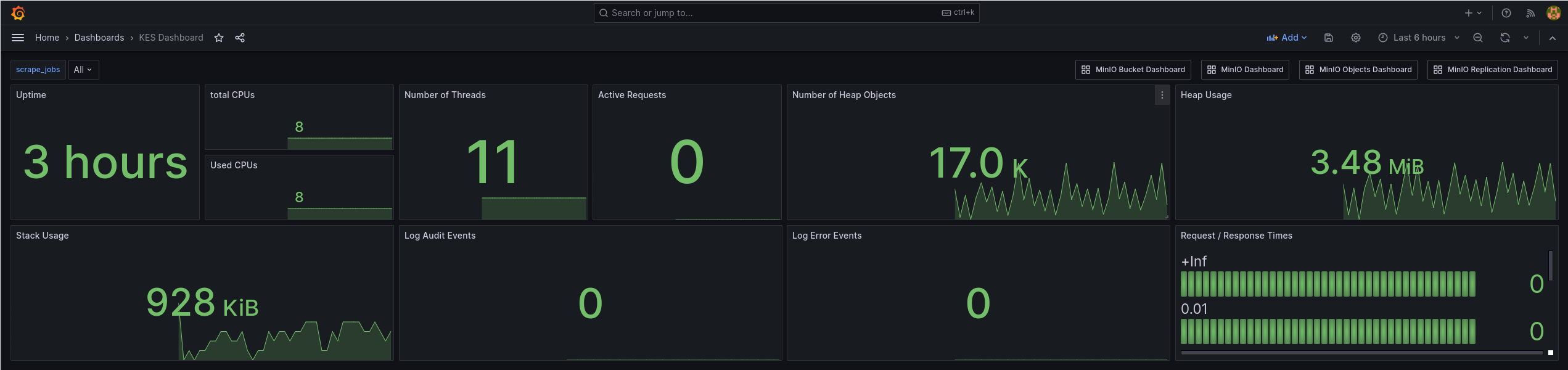

For a graphical dashboard, you can connect KES metrics scraped by Prometheus to Grafana.

MinIO provides an example Grafana dashboard configuration for KES. See the JSON file on Github.
